Welding Robot FD-V8
Technical parameters:
Model | FD-V8 | ||
Number of axes | 6 axis | ||
Load | 6kg | ||
Repeat positioning accuracy | +0.08mm | ||
Drive capacity | 2600w | ||
Robot action range cross-sectional area | 3.14m2x340° | ||
Ambient temperature and humidity | 0~45℃ ,20-80%RH(non-condensing) | ||
Body weight | 144kg | ||
3rd axis loadable capacity | 10kg | ||
Mounting method | Ground/side hanging/lifting | ||
Main Applications | robotic welding arm can be used for laser hybrid welding, electric arc welding, thermal spraying, spot welding, gluing, and handling to meet various needs in production and processing. | ||
Movement range | Basic axis J1 | ±170° (±50° ) | |
Basic axis J2 | - 1550~+90° | ||
Basic axis J3 | -170~+190° | ||
Arm shaft J4 | ±180° | ||
Arm shaft J5 | - 50° ~ + 230° | ||
Arm shaft J6 | ±360° | ||
Maximum speed | Basic axis J1 | 3.66rad/s {210° /s } | |
Basic axis J2 | 3.66rad/s {210° /s } | ||
Basic axis J3 | 3.66rad/s {210° /s } | ||
Basic axis J4 | 7.33rad/s { 420° /s } | ||
Basic axis J5 | 7.33rad/s { 420° /s } | ||
Basic axis J6 | 10.82rad/s {600° /s } | ||
Load capacity | Allowable torque J4 | 11.8N·m | |
Allowable torque J5 | 9.8N·m | ||
Allowable torque J6 | 5.9N·m | ||
Allowable moment of inertia J4 | 0.30kg·m2 | ||
Allowable moment of inertia J5 | 0.25kg·m2 | ||
Allowable moment of inertia J6 | 0.06kg·m2 |

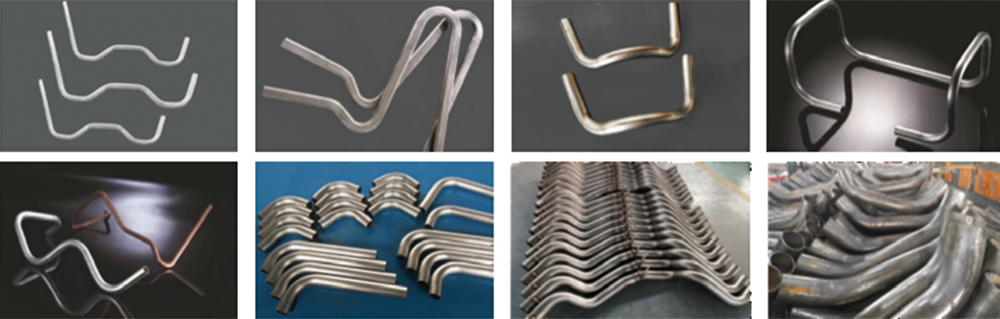

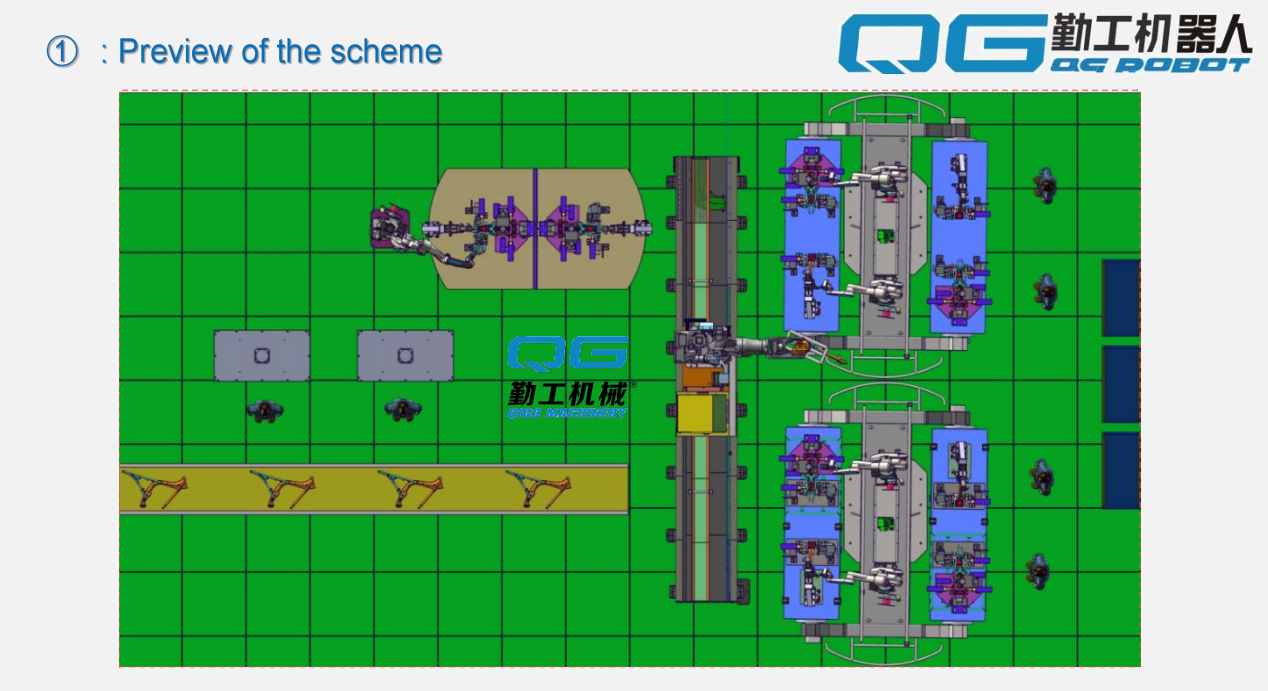

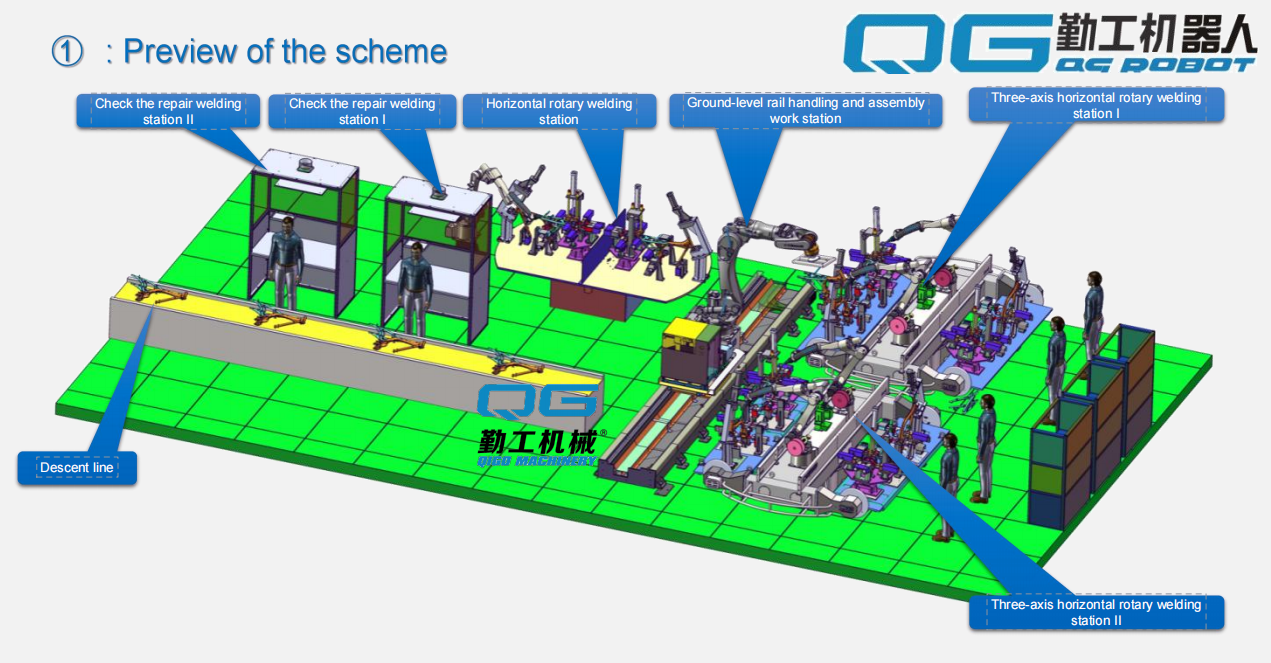

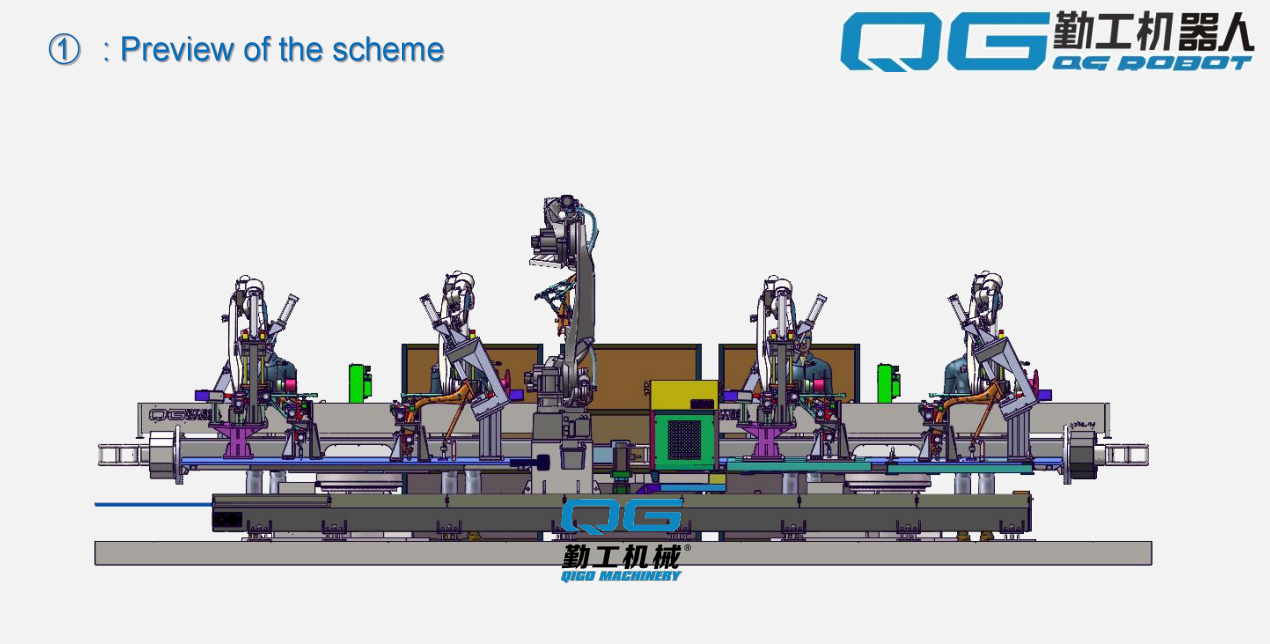

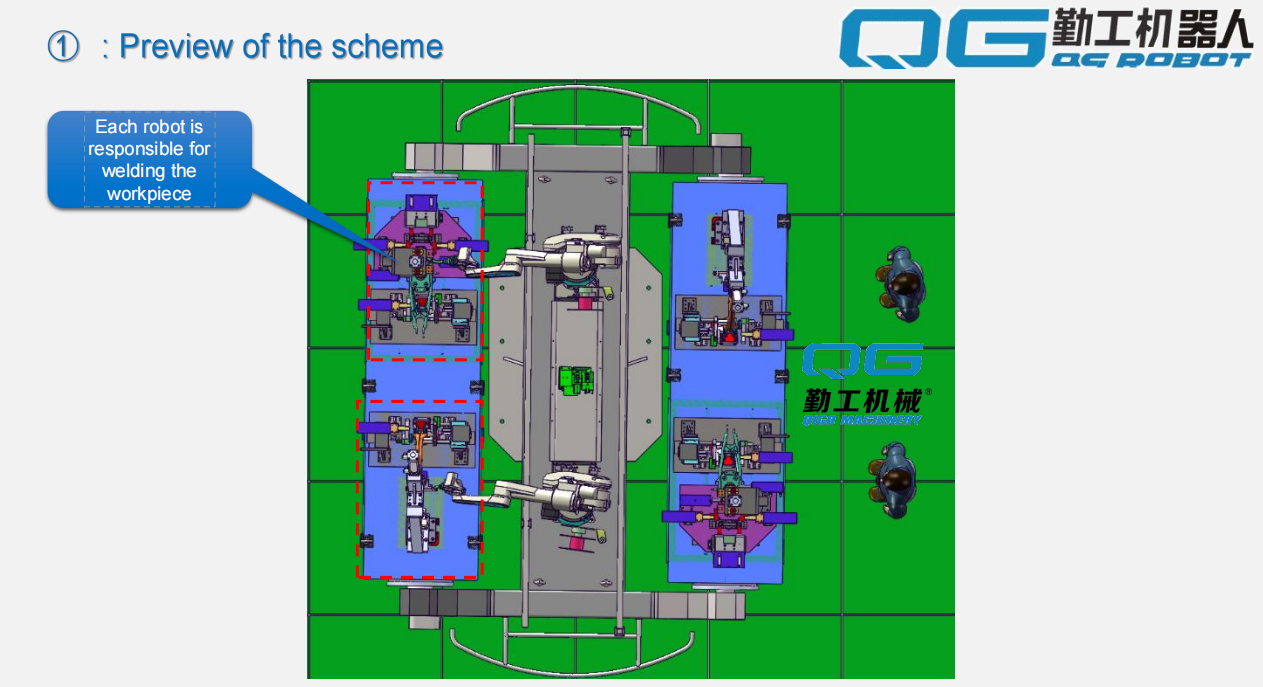

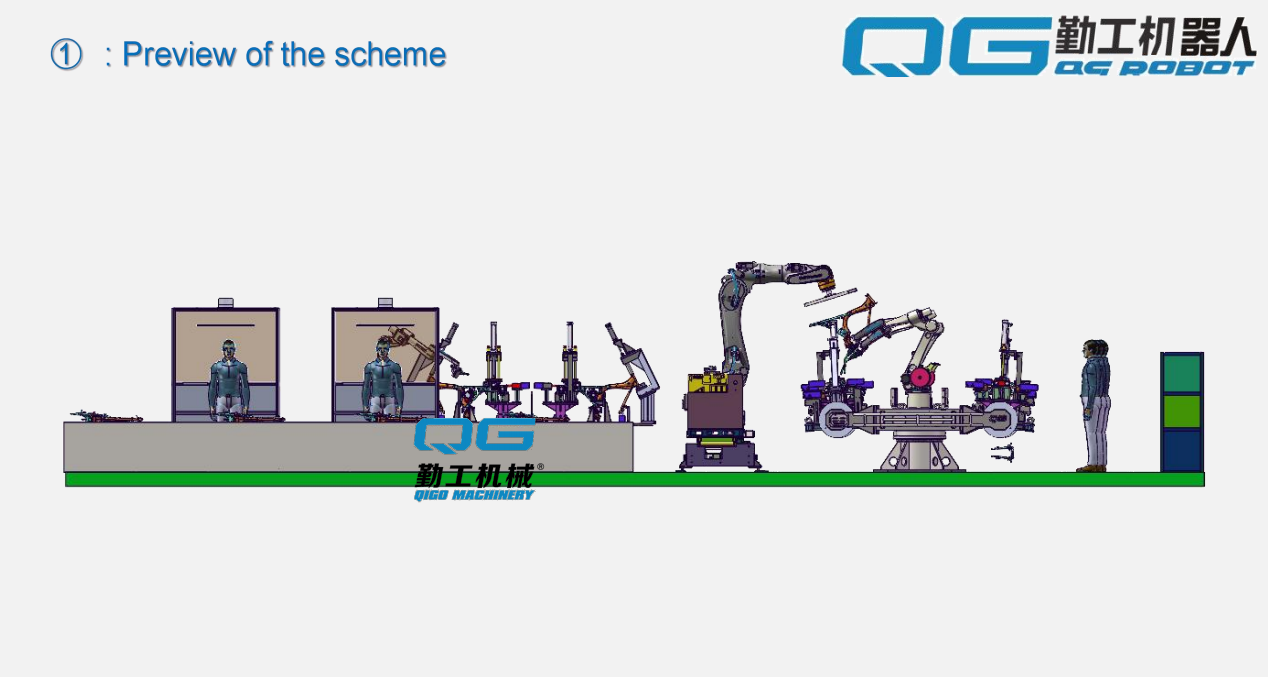

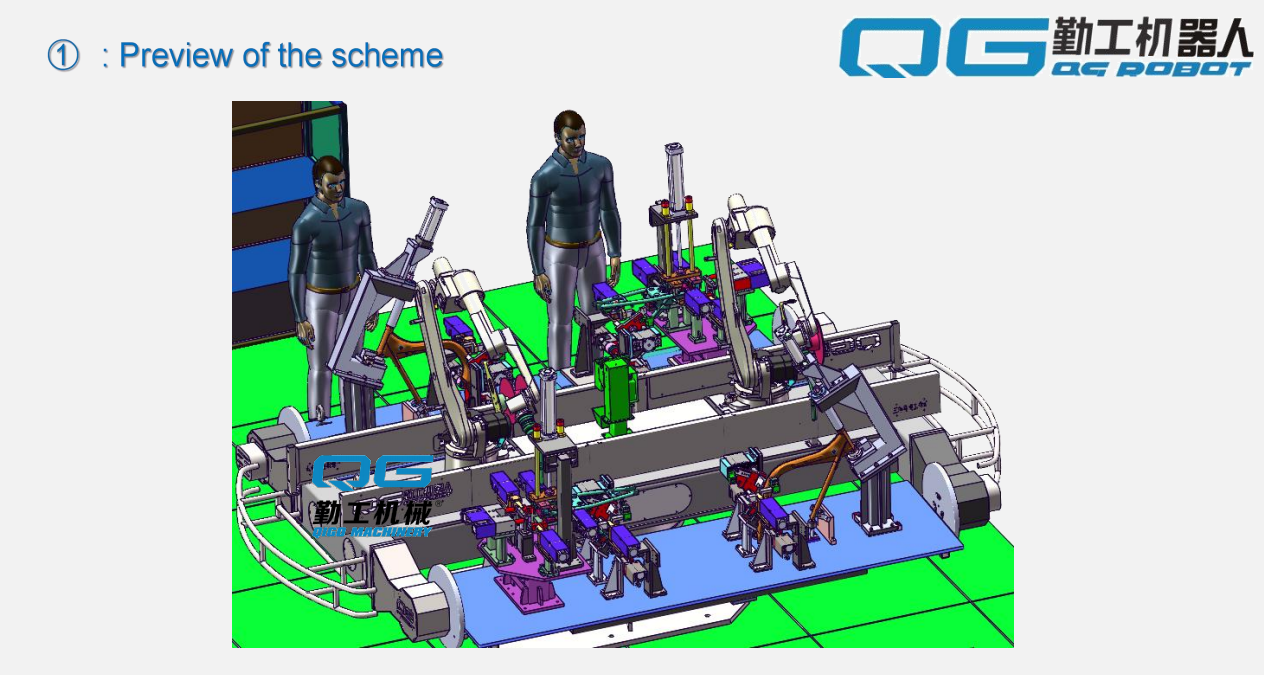

Processable pipe details
