• Welding Robot HA006B

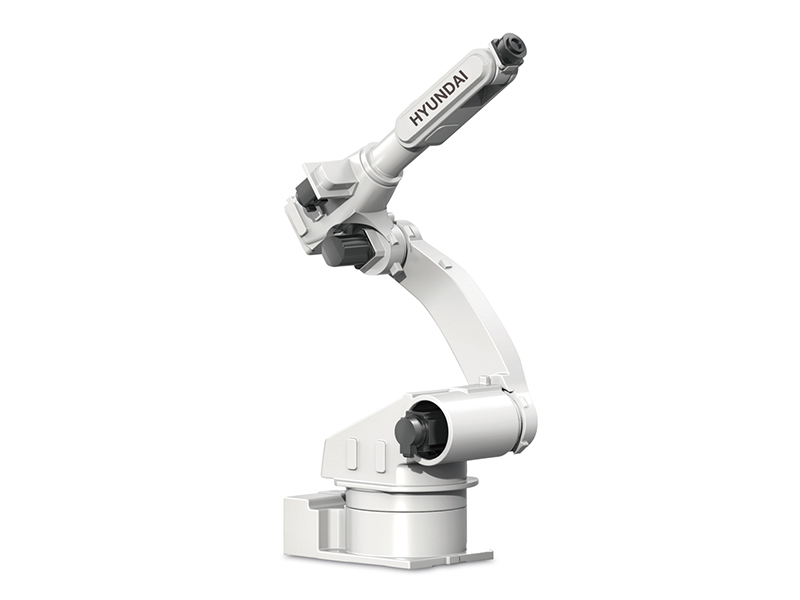

Welding Robot HA006B

  • QinGong
  • China
  • 15-25Days
  • 300 sets per month
Advantage : The TCP setting of Welding Robot HA006B is simple and convenient to debug Smart structure is fast and accurate with strong rigidity&high flexibility The automated welding machine has large working range and strong payload Less types of motor lowers cost of storage accessories and be convenient for after-sale service With the function of robot is highly integrated and the application system can be switched directly Windows CE system is practical for operation The valk welding robot software package is open&free Use Tamagawa motor,Nabtesco reducer;separate encoder&motor can be individually replaced

Welding Robot HA006B


Application: Arc welding、Handling、 Sealing、 Assembly、Loading & Unloading、Deburring, etc


Technical parameters:


Basic data

Payload

Max.Reach

Dergee of Freedom

6kg

1425mm

6

Max.Motion Range

R2

R1

±172°

+180° ~-78°

+180° ~-82°

±180°

±135°

±360°

Max.Speed

R2

R1

230°/s

230°/s

230°/s

430°/s

430°/s

640°/s

Allowable Torque

R2

R1

1.2kgf.m

1.0kgf.m

0.6kgf.m

Auxiliary data

Repeatability

Ambient Temperature

Approximate Weight

Instaltion

±0.05mm

0~45℃

145kg

Floor/Wall/Ceiling



Working Range

welding robot


Payload Diagram

automated welding machine

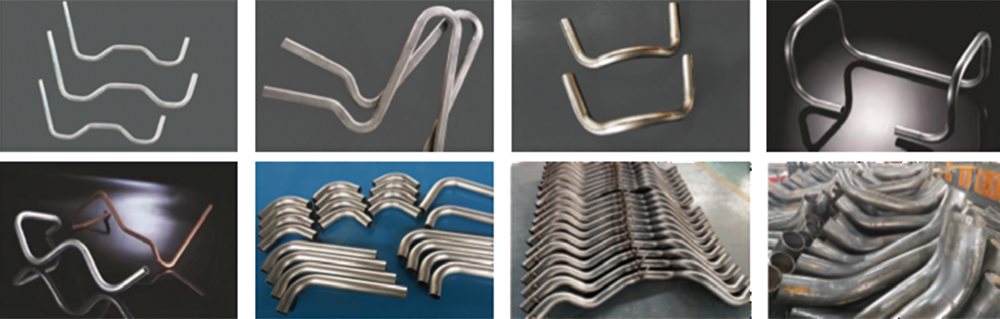

Processable pipe details

automatic car welding robot
