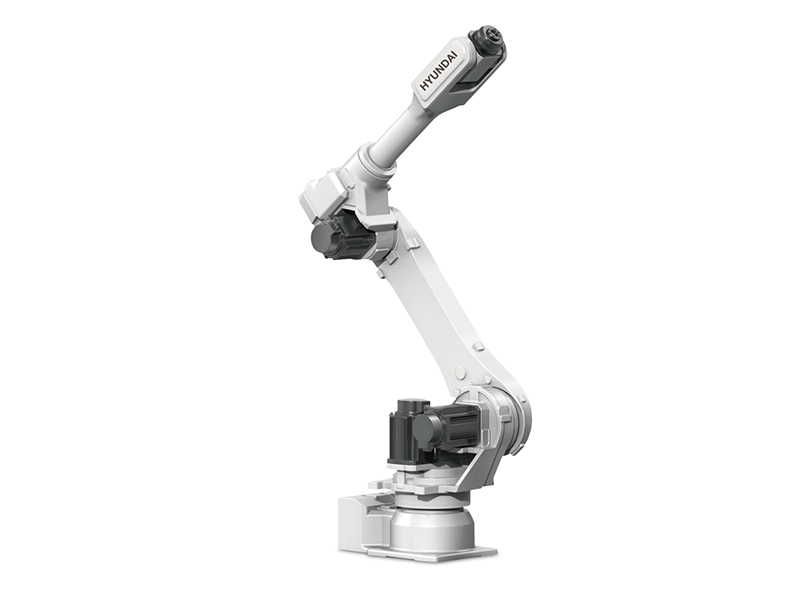

Welding Robot HH020
Application: Arc welding、Handling、 Sealing、 Assembly、Laser Cutting, etc
Technical parameters:
Basic data | Payload Max.Reach Dergee of Freedom | 20kg 1742mm 6 |
Max.Motion Range | S H V R2 B R1 | ±185° +195° ~-70° +180° ~-80° ±195° ±135° ±360° |
Max.Speed | S H V R2 B R1 | 190°/s 180°/s 190°/s 380°/s 380°/s 600°/s |
Allowable Torque | R2 B R1 | 4kgf.m 4kgf.m 2kgf.m |
Auxiliary data | Repeatability Ambient Temperature Approximate Weight Instaltion | ±0.06mm 0~45℃ 225kg Floor/Wall/Ceiling |
Working Range

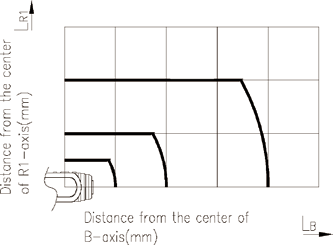

Payload Diagram

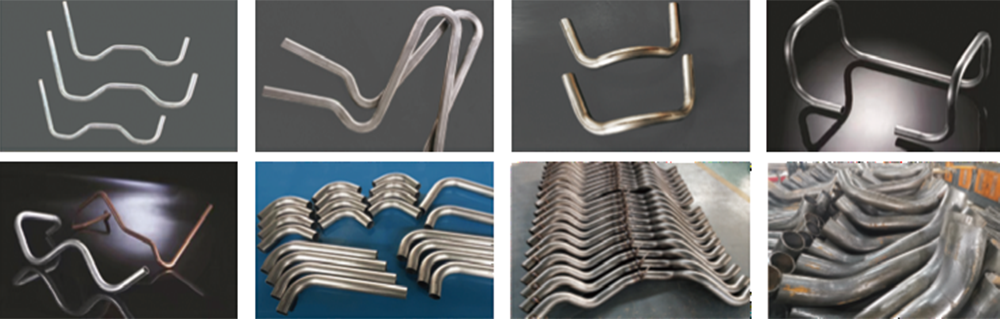

Processable pipe details
