The fitness equipment industry has developed rapidly in recent years, especially high-end treadmills. The manufacturing process of treadmills involves a variety of complex processes, among which the application of laser pipe cutting machines, laser plate cutting machines, pipe bending machines and laser welding machines is particularly critical. These equipment not only improves production efficiency, but also significantly improves the accuracy and durability of the product.
1. Application of laser pipe cutting machines in treadmill frame manufacturing
The frame of the treadmill is its core supporting structure, which is usually made of high-strength steel pipes or aluminum alloy pipes. Laser pipe cutting machines play an important role in this link.
1.1 High-precision cutting
The laser pipe cutting machine can cut the pipe with extremely high precision to ensure that the size of the frame components fully meets the design requirements. For example, when cutting the support pipe of the treadmill base, the laser pipe cutting machine can achieve an accuracy of ±0.1mm to ensure seamless docking during installation.
1.2 Complex shape processing
The treadmill frame design often contains a variety of complex shapes, such as beveling, opening holes, etc. Through CNC programming, the laser pipe cutting machine can quickly complete these complex cutting tasks and significantly improve production efficiency.
1.3 Automated production
The laser pipe cutting machine is equipped with an automatic loading and unloading system, which can achieve continuous production, reduce manual intervention, improve production efficiency and reduce error rate.
2. Application of laser plate cutting machine in the manufacture of treadmill panels and shells
The panels and shells of treadmills are usually made of metal sheets. The laser plate cutting machine has become the core equipment for the manufacture of these parts with its high precision and high efficiency.
2.1 Panel cutting
The control panel of the treadmill needs to be precisely cut to ensure the installation accuracy of buttons and display screens. The laser plate cutting machine can achieve fine cutting on materials such as stainless steel and aluminum alloy to ensure the perfect combination of the appearance and function of the panel.
2.2 Shell processing
The shell of the treadmill needs to be not only beautiful, but also have a certain strength and durability. The laser plate cutting machine can cut heat dissipation holes, mounting holes, etc. on the shell to meet the dual needs of function and beauty.
2.3. Efficient production
The laser plate cutting machine supports mass production, and quickly completes large-scale plate cutting through an automated system, significantly shortening the production cycle.

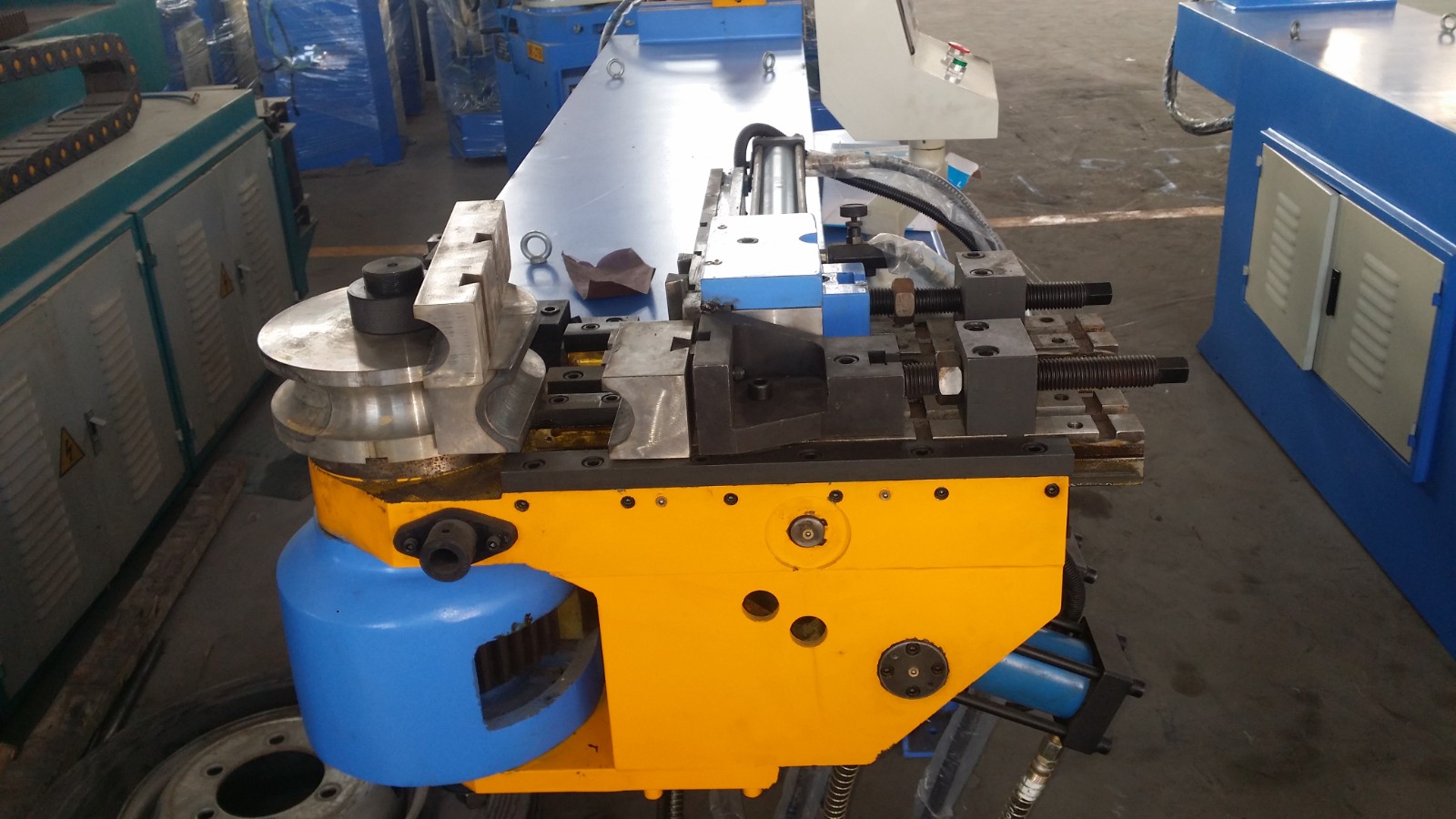

3. Application of pipe bending machine in the manufacture of treadmill handrails and brackets
The handrails and brackets of the treadmill need to be bent and formed according to the ergonomic design, and the pipe bending machine plays an important role in this process.
3.1 Precision bending
The pipe bending machine achieves precise bending through the CNC system to ensure that the angle and radius of the handrails and brackets meet the design requirements. For example, when manufacturing treadmill handrails, the pipe bending machine can achieve complex three-dimensional bending to ensure the comfort and safety of users.
3.2 Applicable to a variety of materials
The pipe bending machine is suitable for a variety of materials such as steel pipes and aluminum alloy pipes to meet the diverse needs of treadmill manufacturing.
3.3 Efficient forming
The pipe bending machine is equipped with automatic feeding and clamping devices to achieve continuous bending operations and greatly improve production efficiency.

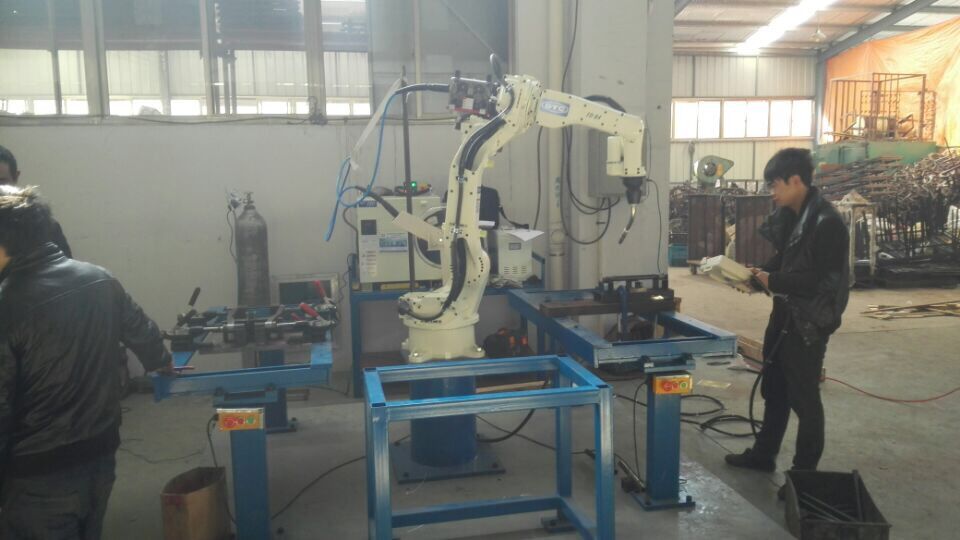

4. Application of laser welding machine in the connection of treadmill components
Laser welding machines are used to connect key components in treadmill manufacturing, such as motor brackets, running belt support frames, etc.
4.1 High-precision welding
The laser welding machine achieves precise welding through a high-energy laser beam, with narrow and deep welds and a small heat-affected zone, ensuring welding strength and airtightness. For example, when welding motor brackets, the laser welding machine can achieve leak-free welding to ensure the long-term stable operation of the treadmill.
4.2. Welding of multiple materials
The laser welding machine is suitable for welding a variety of materials such as steel, aluminum alloy, and stainless steel to meet the connection requirements of different components in treadmill manufacturing.
4.3 Automated welding
The laser welding machine is equipped with an automated system to achieve efficient and continuous welding, reduce manual intervention, and improve production efficiency and consistency.
5. Future Outlook
In short, the application of laser pipe cutting machines, laser plate cutting machines, pipe bending machines, and laser welding machines in the manufacture of high-end treadmills has not only improved production efficiency and product quality, but also promoted the overall technological progress of the fitness equipment industry. The comprehensive use of these equipment has set an example of efficiency, precision, and environmental protection for modern manufacturing.
