In the production process of camping carts, pipe bending machines, laser pipe cutting machines and laser welding machines are key high-precision equipment.This article will introduce in detail the application of these three types of equipment in the production of camping carts, analyze their working principles, actual operations and the advantages they bring.
1. Application of pipe bending machines in the production of camping cart frames
1.1 Working principles and types of pipe bending machines
Pipe bending machines are equipment used to bend metal pipes to specific angles and radii according to design requirements. There are two main types of pipe bending machines:Hydraulic pipe bending machine and CNC pipe bending machine.
For the frame part of the camping cart, CNC pipe bending machine is often used to ensure the accuracy of each bending point, so as to ensure that the parts of the frame can be perfectly matched.
1.2 Practical application of pipe bending machine in the production of camping cart frame
CNC pipe bending machine can automatically set the bending parameters according to the design drawings and quickly complete the bending work of each part of the frame. Moreover, the pipe bending machine can ensure that each pipe is bent at a precise angle and size, thereby ensuring the stability of the entire frame.
The pipe bending machine can complete complex bending work in a short time, and each bending point can maintain consistent accuracy, avoiding the errors that may be caused by manual bending.
1.3 Advantages and influences of pipe bending machines
· High precision and consistency: CNC pipe bending machines can accurately control the bending angle and radius of the pipe, ensuring that the size of each pipe is consistent with the design requirements, thereby improving the accuracy of the entire frame.
· Efficient production: The automated operation of the pipe bending machine improves production efficiency and can complete mass production in a short time.
· Material saving: Precise bending can reduce material waste and reduce production costs.
· Wide applicability: The pipe bending machine can adapt to pipes of different materials, such as stainless steel, aluminum alloy, etc., providing more choices for the diversified design of camping carts.
2. Application of laser pipe cutting machine in the processing of camping cart parts

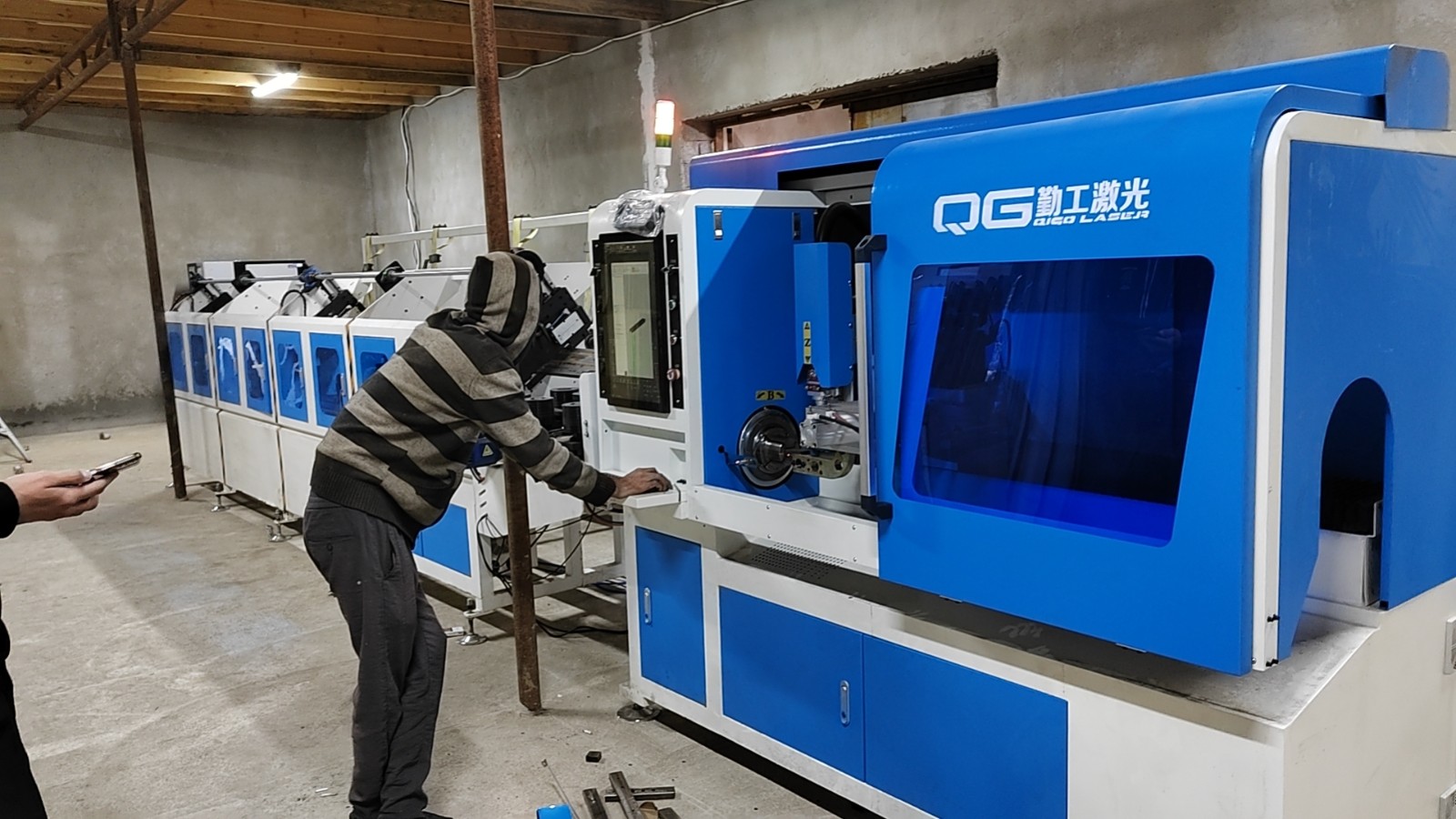

2.1 Working principle and characteristics of laser pipe cutting machine
Laser pipe cutting machine is a device that uses a laser beam to perform high-precision cutting of metal pipes. Compared with traditional cutting methods, laser pipe cutting machines have the advantages of high precision, no burrs, and fast cutting speed.
The characteristics of laser pipe cutting machines include:
· High precision: The accuracy of laser cutting can reach micron level, which can perfectly restore the details in the design drawings.
· High efficiency: The cutting speed of the laser tube cutting machine is much higher than that of traditional cutting equipment, which is particularly suitable for mass production.
· No burrs and no deformation: Laser cutting produces almost no burrs, and the cutting surface is smooth, which reduces the subsequent processing and finishing work.
2.2 Application of laser tube cutting machine in camping cart manufacturing
In the manufacturing process of camping carts, laser tube cutting machines are mainly used for cutting metal parts such as frames, support frames, chassis, etc. Laser tube cutting machines can complete cutting tasks quickly and accurately, avoiding the errors and waste that may be caused by traditional cutting methods.
The laser pipe cutting machine can automatically complete the cutting of pipes under the guidance of design drawings, and the cutting process almost does not produce heat-affected zones, so it can avoid deformation of pipes due to overheating.
In addition, the laser pipe cutting machine can also punch holes or grooves on the pipe according to design requirements, which is particularly important for the assembly of camping carts.
2.3 Advantages and impacts of laser tube cutting machine
· High-precision cutting: The laser pipe cutting machine can provide micron-level cutting accuracy to ensure that the size of each component is consistent with the design drawings.
· High-speed cutting: Laser cutting has a high speed, which can greatly improve production efficiency and is particularly suitable for mass production.
· Material saving: The cutting process of the laser tube cutting machine has almost no heat effect, reducing material waste.
· High cutting quality: The cutting surface of laser cutting is smooth and burr-free, and no post-processing is required, which reduces production costs.
3. Application of laser welding machine in camping cart assembly
3.1 Working principle of laser welding machine
Laser welding machine uses high-energy laser beam to locally heat metal materials to the melting point to form a molten pool, thereby realizing the connection of materials. Laser welding has the advantages of small heat-affected zone, large welding depth and fast welding speed.

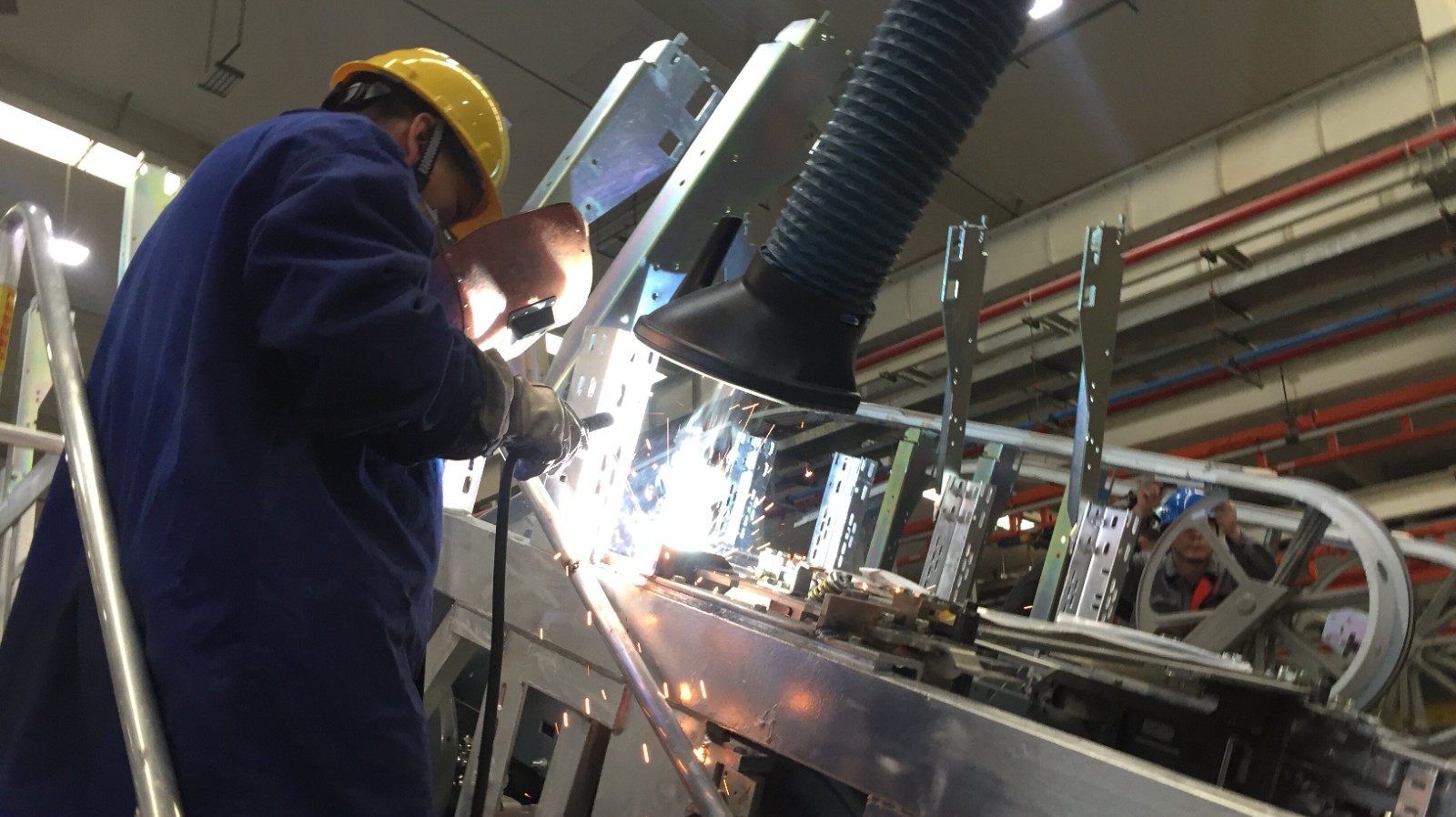

3.2 Application of laser welding machine in camping cart manufacturing
In the manufacturing process of camping carts, the welding of the frame and the support frame is a very critical link. Laser welding machine can provide high-precision welding to ensure the strength and durability of the welding point.
Traditional welding methods may cause uneven welding points or insufficient welding strength, while laser welding machine can provide precise heat input to avoid material deformation and uneven welding.
3.3 Advantages and impacts of laser welding machines
· High precision: Laser welding machines can provide micron-level welding precision to ensure the quality of each welding point.
· Efficient production: Laser welding is fast, suitable for mass production, and can improve production efficiency.
· Reduced heat impact: The heat affected zone of laser welding is small, which avoids excessive heat treatment of metal materials, reduces deformation and strength reduction.
· High welding quality: The welding points produced by laser welding are strong and uniform, and the welding surface is smooth, which reduces the post-finishing work.
Conclusion
Pipe bending machines, laser pipe cutting machines and laser welding machines play an important role in the manufacturing process of camping carts. The application of these three types of equipment not only improves production efficiency, but also ensures the structural strength and assembly accuracy of camping carts.
