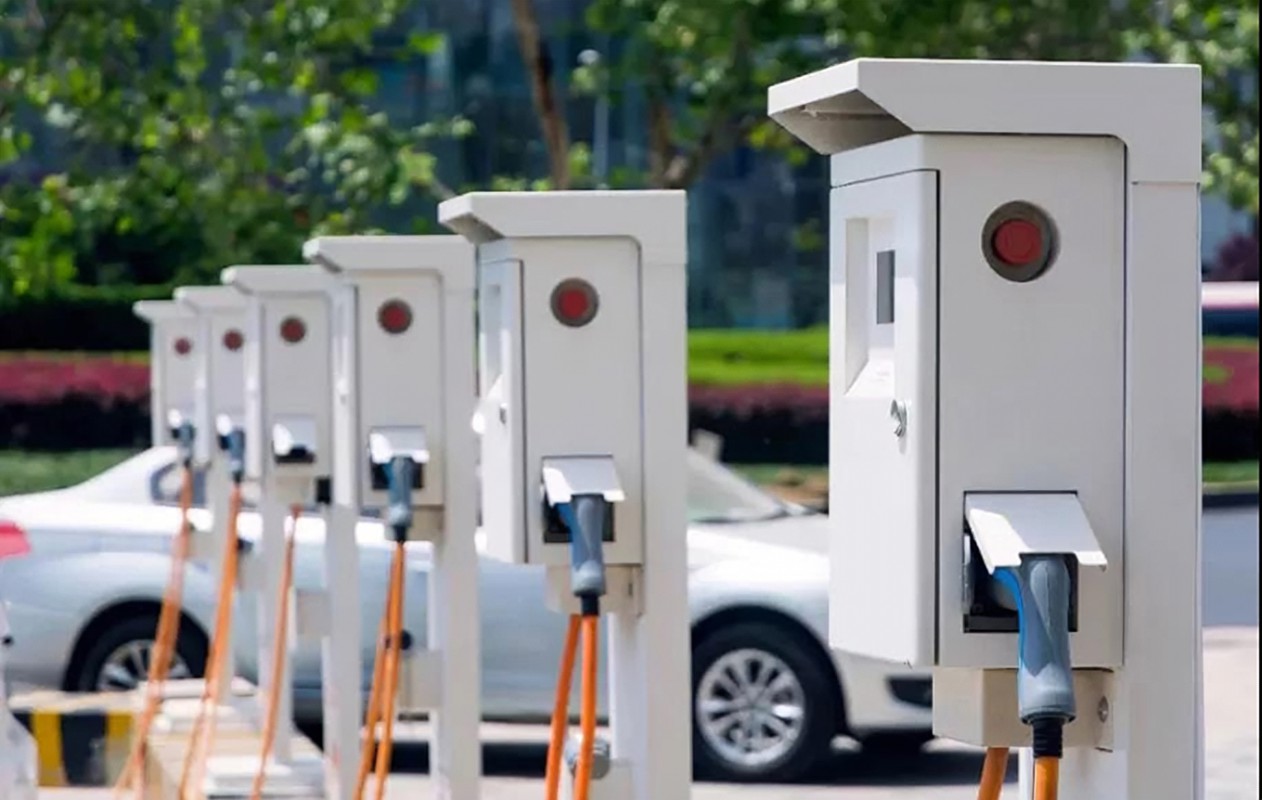

As the global demand for new energy vehicles (NEVs) continues to surge, the supporting infrastructure—especially charging pile systems—must evolve rapidly to meet performance, safety, and durability standards. In particular, the combined use of laser pipe cutting machines, laser plate cutting machines, pipe bending machines, and laser welding machines has revolutionized the way these components are produced.
1. Laser pipe Cutting Machines: Precision Meets Efficiency
Laser pipe cutting machines play a foundational role in the fabrication of charging pile bracket structures. These machines use high-powered lasers to accurately cut metal pipes into predetermined shapes and dimensions.
Before using the laser pipe cutting machine, the operator must fully debug the equipment. Then lift the metal pipe to be cut to the loading rack of the laser pipe cutting machine, and use the automatic loading system of the equipment to smoothly and accurately feed the pipe into the cutting area. According to the specific characteristics of the pipe and the cutting requirements, the operator accurately sets the key parameters such as cutting speed, laser power, pulse frequency, and cutting gas pressure in the control system of the laser pipe cutting machine. When everything is ready, start the laser pipe cutting machine, and the cutting head, driven precisely by the control system, cuts the pipe along the pre-set cutting path.
Functions and Advantages:
High Precision: Laser pipe cutting mchines can achieve tolerances within ±0.1 mm, essential for parts that must fit together with minimal clearance.
Complex Geometries: With 3D cutting capabilities, they can handle intricate holes, slots, and bevels in round, square, and rectangular tubing.
Automation-Friendly: Integration with CAD/CAM software allows for quick setup and automated batch processing, boosting productivity.
In the context of NEV charging piles, these machines are responsible for forming the skeletal framework of the bracket—providing both structural integrity and aesthetic alignment.
2. Laser Plate Cutting Machines: The Backbone of Flat Component Fabrication
Many parts of a charging pile bracket, such as mounting plates, base panels, and faceplates, are flat metal components that require precision cutting. This is where laser plate cutting machines excel.
Key Roles in the Manufacturing Process:
Material Flexibility: Laser plate cutting machines can cut through a variety of metals such as stainless steel, aluminum, and carbon steel—each commonly used in different climate and load-bearing conditions.
Speed and Consistency: High-speed cutting capabilities ensure large volumes of parts can be produced uniformly, which is critical for scalability.
Edge Quality: The clean-cut edges minimize the need for post-processing, reducing labor and time.
With programmable settings and nesting capabilities,laser plate cutting machines optimize material usage, helping manufacturers reduce waste while maintaining structural performance.
3. Pipe Bending Machines: Shaping Strength and Form
After pipe sections are cut, they often require bending into specific shapes to support the ergonomic and functional design of the charging station. Pipe bending machines provide this capability.
Applications in Pipe Bending Machines:
Customized Angles: From gentle arcs to sharp bends, pipe bending machines shape pipes without collapsing or wrinkling the material.
Repeatability: CNC-controlled of pipe bending machine ensures that every bracket component matches design specifications, which is crucial for assembly-line compatibility.
Structural Enhancement: Correct bending of pipe bending machine adds not only to the form but also to the load distribution of the bracket.
In NEV infrastructure, ergonomics and visual appeal are increasingly important, and bent components help designers innovate without compromising strength.
4. Laser Welding Machines: The Final Bond of Strength
Once components are cut and bent, they must be joined into a single, robust structure. Laser welding machines offer the precision and cleanliness required for this crucial step.
Why Laser Welding Machine Stands Out:
Minimal Heat-Affected Zone (HAZ): This reduces the risk of deformation and preserves the mechanical properties of the materials.
Strong, Clean Joints: Laser welding machine produces narrow, deep welds that are both aesthetically pleasing and structurally sound.
Automation Compatibility: Laser welding machine such as robots and CNC systems can carry out precise welding sequences, improving throughput and safety.
In the assembly of charging pile brackets, laser welding machine is typically the last step, ensuring all parts are fused with enduring strength and corrosion resistance.
Conclusion: A Symphony of Precision Technologies
By integrating laser pipe cutting machine, laser plate cutting machine, pipe bending machine, and laser welding machine into a cohesive production line, manufacturers can achieve not only superior build quality but also greater design flexibility, faster lead times, and lower costs. As NEV adoption accelerates, the demand for such precision in infrastructure components will only become more pronounced—driving continued innovation in automated fabrication.
