As a device that combines practical and entertainment functions, outdoor barbecue grills have been popular in recent years. This article will elaborate on how to make outdoor barbecue grills through laser pipe cutting machines, laser plate cutting machines, pipe bending machines, laser welding machines and other equipment, explore the technical applications and process flows in each link, and help readers fully understand this process.
1. Design and material selection
1.1 Design concept
In the design process of outdoor barbecue grills, the first thing to do is to determine its structural and functional requirements. The use of stable support structures and suitable materials is an important part of the design.
1.2 Material selection
The materials of outdoor barbecue grills are usually stainless steel, aluminum alloy or iron. But the specific material to be selected needs to be determined according to the design requirements, cost budget and target market needs of the barbecue grill.
2. Processing technology: laser cutting and bending
After the design is completed, the next step in making the barbecue grill is to process the materials. Laser tube cutting machines, laser plate cutting machines and tube bending machines are commonly used in modern manufacturing. High-efficiency equipment, these equipment can convert design drawings into specific parts to ensure accuracy and production efficiency.
2.1 Application of laser pipe cutting machine
Laser pipe cutting machine is mainly used for high-precision cutting of metal pipes, and is widely used in the manufacture of support frames and frame parts of barbecue grills.
The laser pipe cutting machine uses the high temperature and concentrated energy of the laser beam to quickly cut the surface of the pipe, with smooth cutting edges and avoiding burr problems.
The laser pipe cutting machine can be automatically programmed according to CAD drawings to cut various complex shapes of pipes. For example, the supporting legs of the barbecue grill can be precisely cut and punched by the laser pipe cutting machine to ensure that the docking and assembly of each part are more perfect.
2.2 Application of laser plate cutting machine

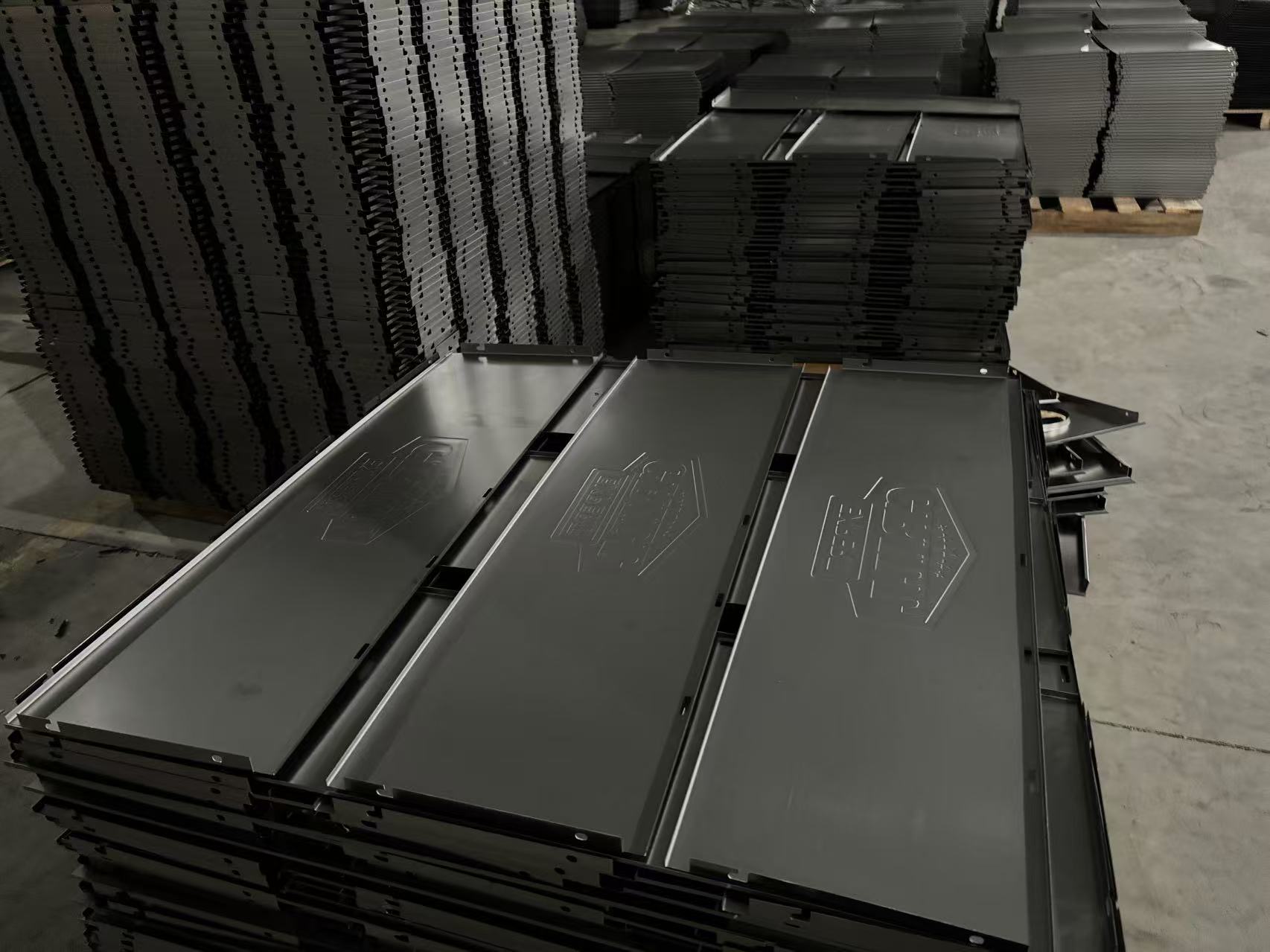

Laser plate cutting machine is mainly used to cut flat metal materials and is widely used to make flat parts such as the furnace body and grill of the barbecue grill.
The working principle of the laser plate cutting machine is similar to that of the laser tube cutting machine. The metal sheet is heated to a molten state by a focused laser beam, and then the molten metal is blown away by air flow to achieve the purpose of precise cutting.
In the production of outdoor barbecue grills, the furnace body and grill usually need to be processed by a laser plate cutting machine. The laser plate cutting machine can cut metal plates of various thicknesses and can achieve precise cutting contours and complex patterns.
2.3 Application of pipe bending machine

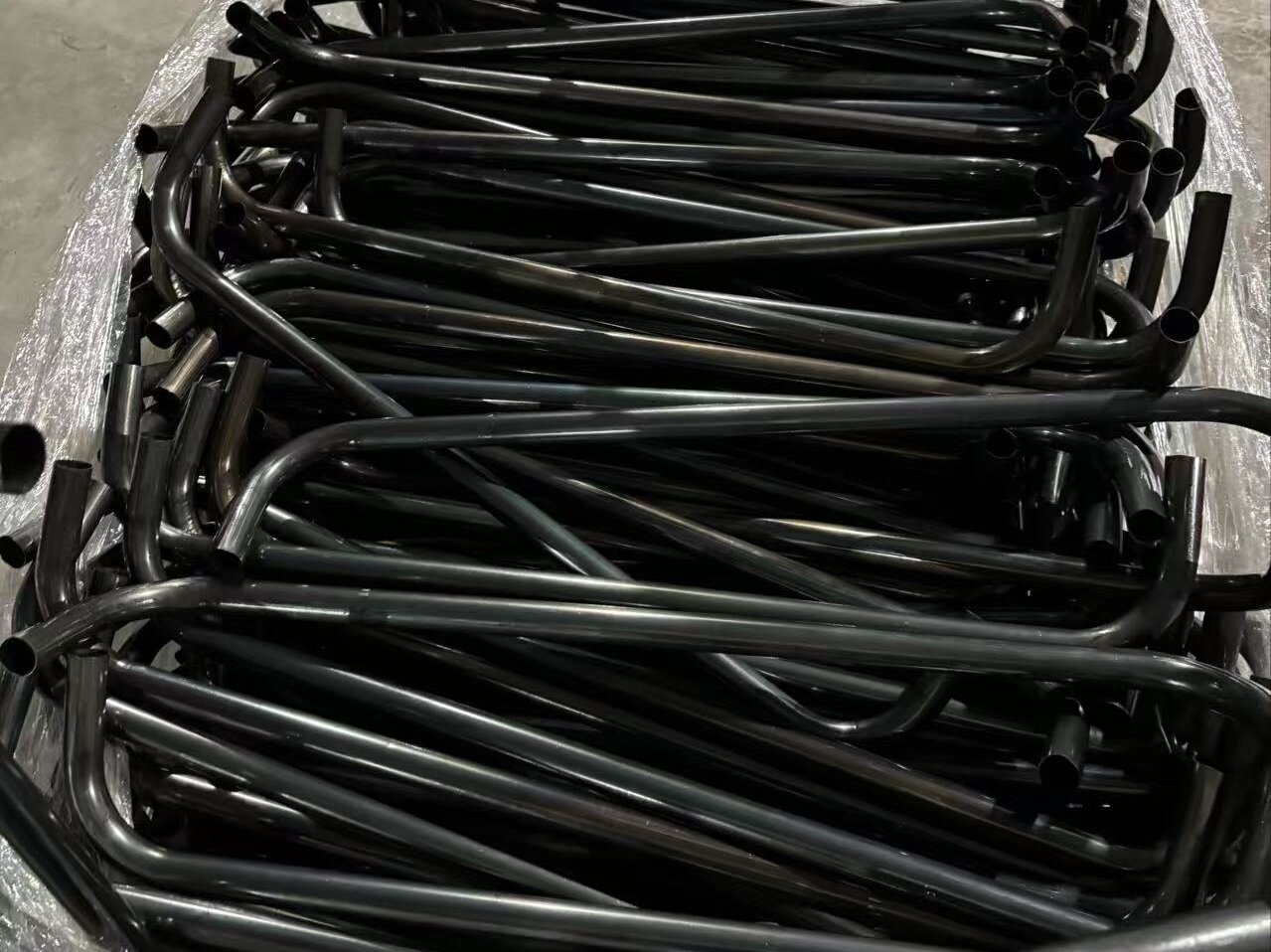

Pipe bending machine is a device used to bend metal pipes, which is often used to make support pipes and connecting parts of barbecue grills.
Compared with traditional manual pipe bending, pipe bending machine has higher precision and efficiency, and can obtain ideal bending angles and shapes while maintaining the strength of the pipe.
In the production of barbecue grills, the application of pipe bending machines can make the pipes of the support frame more stable and meet the design requirements. For example, the four supporting legs of the barbecue grill may need to be bent at a certain angle to enhance the stability of the rack.
Bending by pipe bending machines can not only ensure accurate angles, but also keep the surface of the pipe smooth and reduce surface damage.
3. Welding and assembly: efficient application of laser welding
In the metal processing process, welding is an important process for connecting various parts, and the introduction of laser welding technology has brought revolutionary changes to the welding process.
Laser welding machines use high-energy laser beams for welding, which have the advantages of high precision, deep penetration and fast welding speed, and are widely used in the production process of outdoor barbecue grills.
Through the laser welding machine, the cut pipes, metal sheets and other accessories can be accurately welded into a whole.
For example, the frame structure of the barbecue grill is usually composed of multiple pipes. Through laser welding, the precise docking of the components can be achieved, and the welds are smooth and strong, and can withstand long-term use pressure.
Conclusion
With the development of science and technology, the application of high-efficiency equipment such as laser pipe cutting machines, laser plate cutting machines, pipe bending machines and laser welding machines has greatly improved the manufacturing efficiency and quality of outdoor barbecue grills. In the future, outdoor barbecue grills will be more diversified and intelligent to meet the needs of different consumers.
