With the push for lightweight, durable, and precisely engineered frames, advanced manufacturing equipment such as laser pipe cutting machines, laser plate cutting machines, pipe bending machines, and laser welding machines plays a crucial role. These tools have revolutionized the production of motorcycle frames by improving accuracy, reducing waste, and enabling complex designs.
1. Precision Cutting with Laser pipe Cutting Machines
Traditional cutting methods, like saws and mechanical drills, often led to inaccuracies, rough edges, and increased post-processing. However, the laser pipe cutting machine (or laser pipe cutter) has brought a new level of precision and efficiency to this critical stage.
Laser pipe cutting machines use high-powered lasers to cut through various metals, such as carbon steel, stainless steel, and aluminum alloys. These laser pipe cutting machines can process round, square, rectangular, or custom-shaped pipes with extremely high precision.
For electric motorcycle frames, this means:
l Enhanced design flexibility: Engineers can create more aerodynamic and structurally optimized frame designs.
l Improved assembly accuracy: With precisely cut joints, parts fit together with minimal gaps, reducing the need for excessive welding material.
l Time and material savings: Less waste is generated due to accurate nesting and cutting patterns, and processing times are significantly shortened.
l Moreover, modern laser pipe cutting machines often come with automatic loading and unloading systems, allowing for seamless integration into mass production lines.
2. Sheet Metal Shaping with Laser Plate Cutting Machines
The laser plate cutting machine, or flatbed laser cutter, is ideal for processing these components.
These laser plate cutting machines can cut metal sheets of varying thicknesses with exceptional precision and speed. Much like pipe cutters, they also use CNC technology for programming intricate patterns, whether for standard shapes or custom-cut designs.
Applications in the frame manufacturing process include:
Creating mounting plates: These are used for affixing motors, batteries, and control modules. Accurate laser plate cutting machines ensures secure and aligned installations.
Fabricating side panels and reinforcement plates: These parts must conform to tight tolerances to maintain structural integrity.
Integrating branding and identification: laser plate cutting machines can also engrave serial numbers, logos, or safety warnings directly onto components, ensuring traceability and compliance.
By employing laser plate cutting machines, manufacturers can achieve higher production throughput, better edge quality, and reduced manual labor compared to plasma or water jet methods.
3. Forming Geometry with pipe Bending Machines
Pipe bending machines — especially CNC-controlled types — are instrumental in this phase. These pipe bending machines can bend metal pipes to precise angles and radii without collapsing the pipe structure or compromising strength.
The benefits of modern pipe bending machines include:
Consistent bending accuracy: Each piece is bent to the exact angle needed, ensuring uniformity across production batches.
Support for complex bending sequences: Multi-axis CNC benders can create complex 3D shapes in a single setup.
Material preservation: These pipe bending machines minimize deformation and thinning, preserving the mechanical properties of the pipe.
The integration of intelligent control systems means pipe bending machine sequences can be simulated before actual processing, reducing trial-and-error and material wastage.
4. Structural Integrity through Laser Welding Machines
The final and arguably most critical stage of frame manufacturing is the joining of all components into a single, unified structure. This is where laser welding machines shine. Unlike traditional MIG or TIG welding, laser welding machine uses a focused laser beam to melt and fuse metal parts together, producing clean, high-strength welds with minimal heat-affected zones.
For electric motorcycle frames, this translates into:
Stronger joints: Laser welding machine penetrates deeply and forms durable connections that can withstand vibration and impact stresses.
Minimal distortion: Because of the localized heating, the rest of the frame remains unaffected, maintaining dimensional accuracy.
Aesthetically pleasing welds: The clean, narrow weld seams require little to no post-weld finishing, which is particularly beneficial for visible parts of the frame.

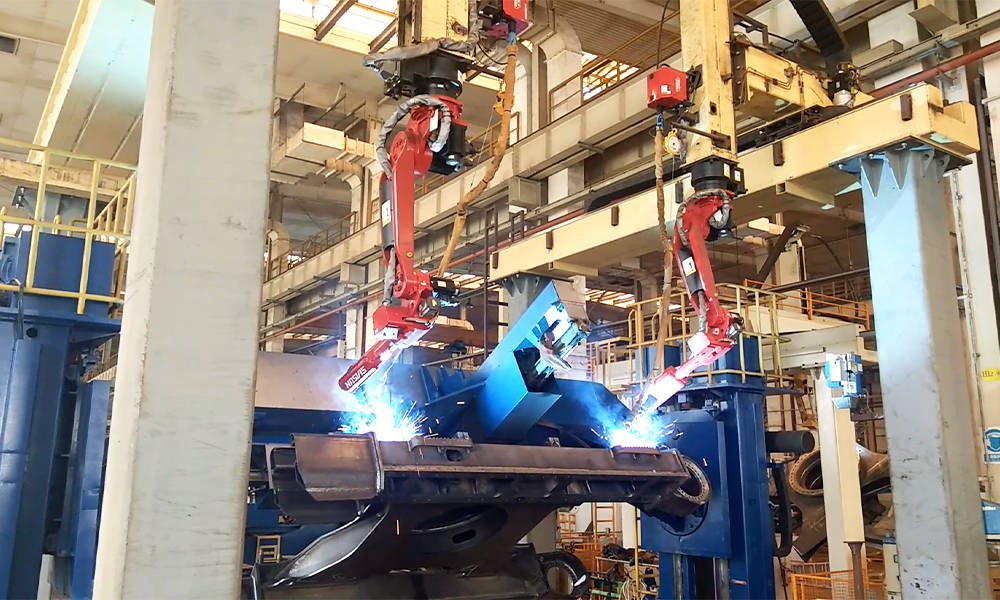

Automation and consistency: Robotic laser welding machines systems ensure that every weld is consistent, reducing the chance of human error and speeding up the production line.
Some advanced systems laser welding machines also incorporate real-time monitoring and quality control mechanisms, which check the integrity of each weld and alert operators of any defects.
Conclusion: A Smart and Seamless Manufacturing Ecosystem
The integration of laser pipe cutting machine, laser plate cutting machine, pipe bending machine, and laser welding machines has dramatically enhanced the production of electric motorcycle frames. These systems not only improve precision and reduce waste but also allow for greater design flexibility and faster time-to-market — crucial factors in today’s competitive electric vehicle landscape.
