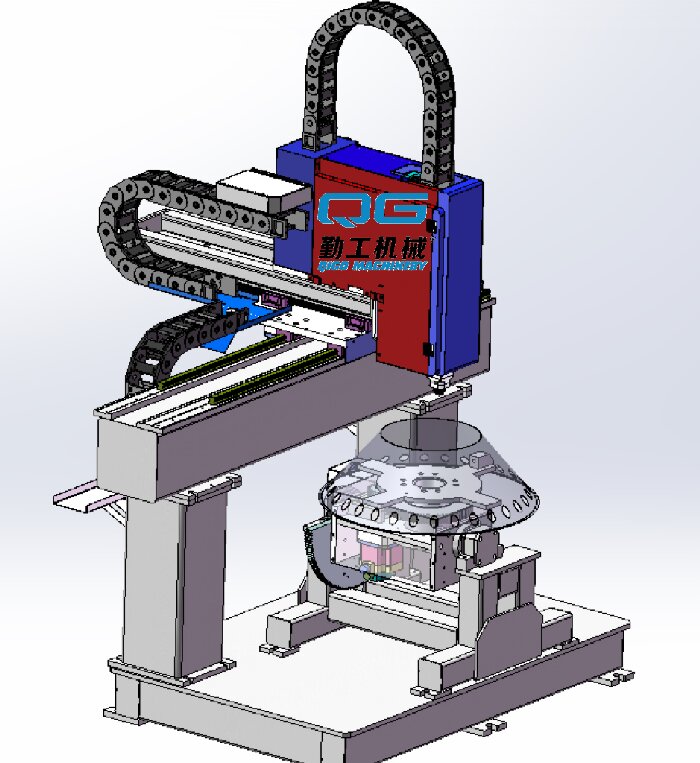

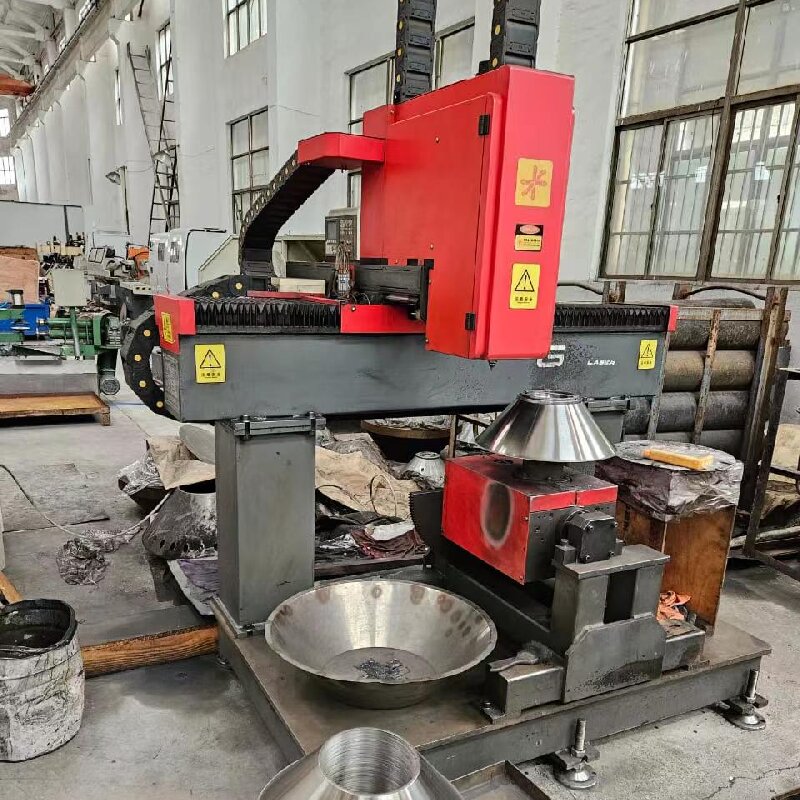

Mechanical composition:

1、Small plane three-axis laser cutting mechanism;

2、 Two-axis servo transformer, one of which is linked with the system, as the pipe cut W axis, and the other axis is used to adjust the cutting angle of the workpiece (manually set);

3、Positioning tooling.

Operational principle:

1、Operation process: the shift machine returns to zero horizontal direction to put the workpiece pneumatic clamp start program the workpiece rotates to the cutting Angle automatic cutting;

2、Use the Bachu tube cutting system to cut the conical tube as the related hole of the round tube.

List of the main equipment configuration
